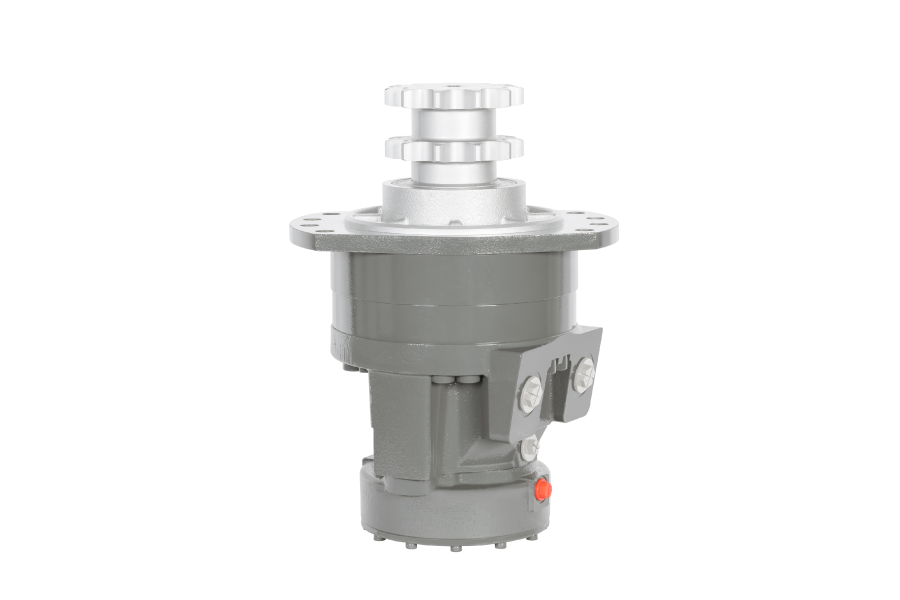

HRP05 Series Radial Piston Hydraulic Motor

Series of pictures

The HRP05 series radial piston hydraulic motor, is a kind of low speed high torque hydraulic motor, disc valve structure, with high pressure, good stability at low speed, high volumetric efficiency and mechanical efficiency, the motor can be equipped with a variety of functional modules.

Displacement: 470/520/565/750/820cc/rev

Max.differential pressure: 400~450 bar

Configuration model/order number

****

Copy to the clipboard

ADD TO CART Catalog download Obtain 3D/2D drawings Export the configured parameters

Open all | Close all

Series advantages

Using tapered roller bearing structure, can support larger axial and radial load.
Advanced disc valve structure,strong automatic compensation ability after wear, to ensure high volumetric efficiency, long life, efficient and stable work.
Various function modules can be selected, such as flushing valve, brake, variable speed valve, speed sensor, etc. to meet the needs of users in various fields.

Technical specifications

Series				HRP05
Motor performance
Displacement			cm³/rev.	470	520	565	750	820
Max.torque			Nm	3366	3724	4047	4775	5220
Min.stable speed			rpm	5
Max.speed	Displacement		rpm	385	350	320	240	220
	Variable displacement		rpm	465	420	385	290	265
Pressure	Max.differential pressure		bar	450			400
Max.power			kW	29			35
Weight	Singlespeed	With brake	kg	54
		Without brake	kg	43
	Twospeed	With brake	kg	60
		Without brake	kg	49
Brake
Static braking torque			Nm	2200
Release pressure			bar	11 ～ 15
Maximum pressure at brake port Z			bar	30
Oil volume to operate brake			cm³	23
